1.Product Introduction
1.1. Product description

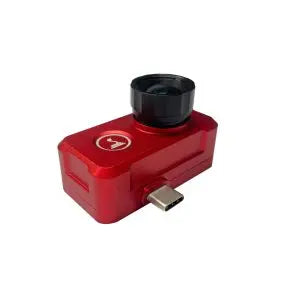

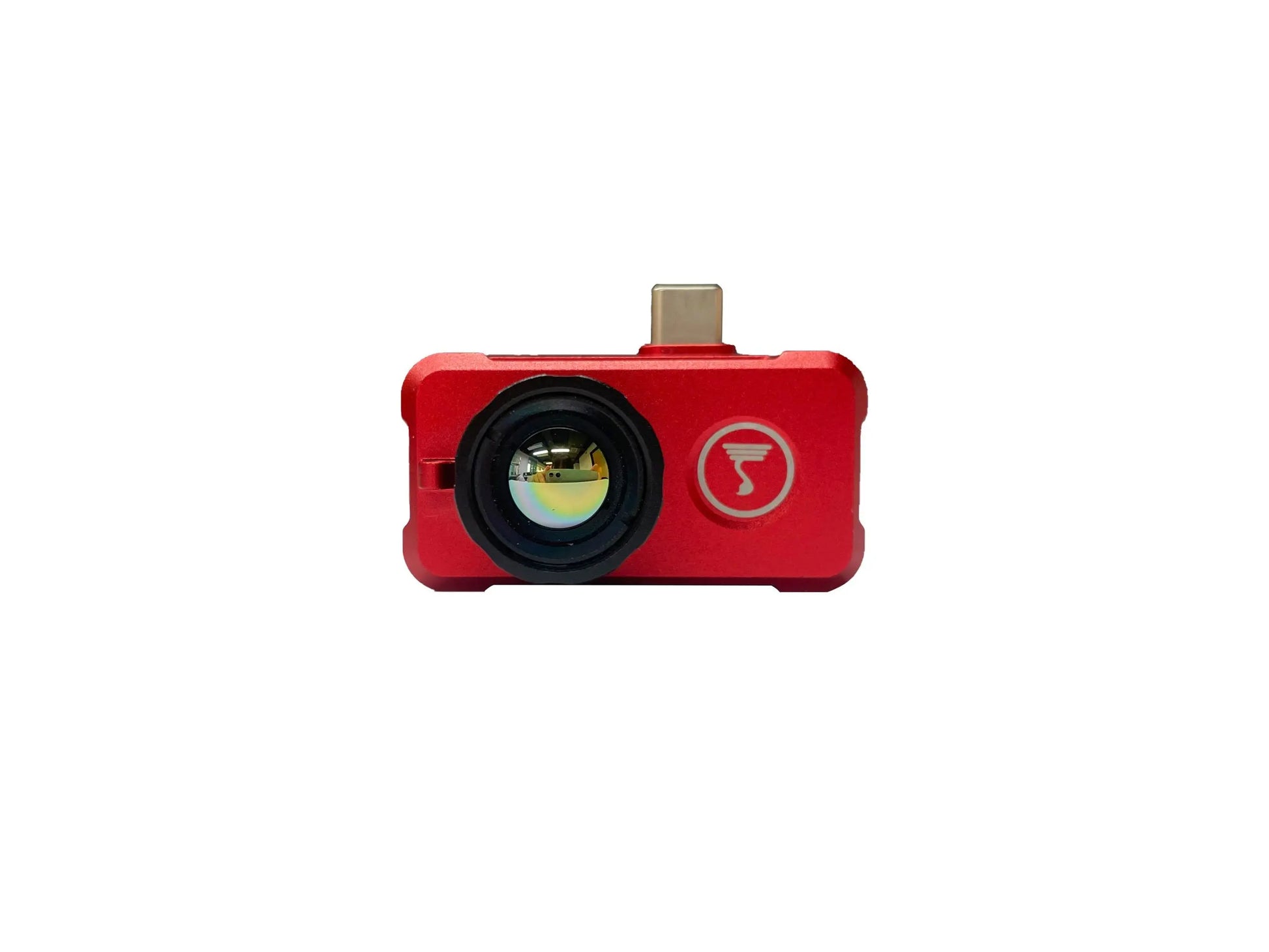

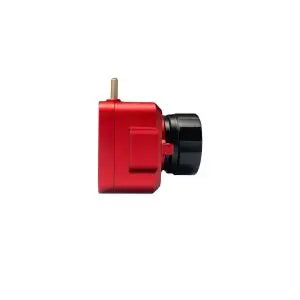

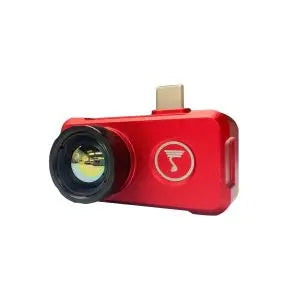

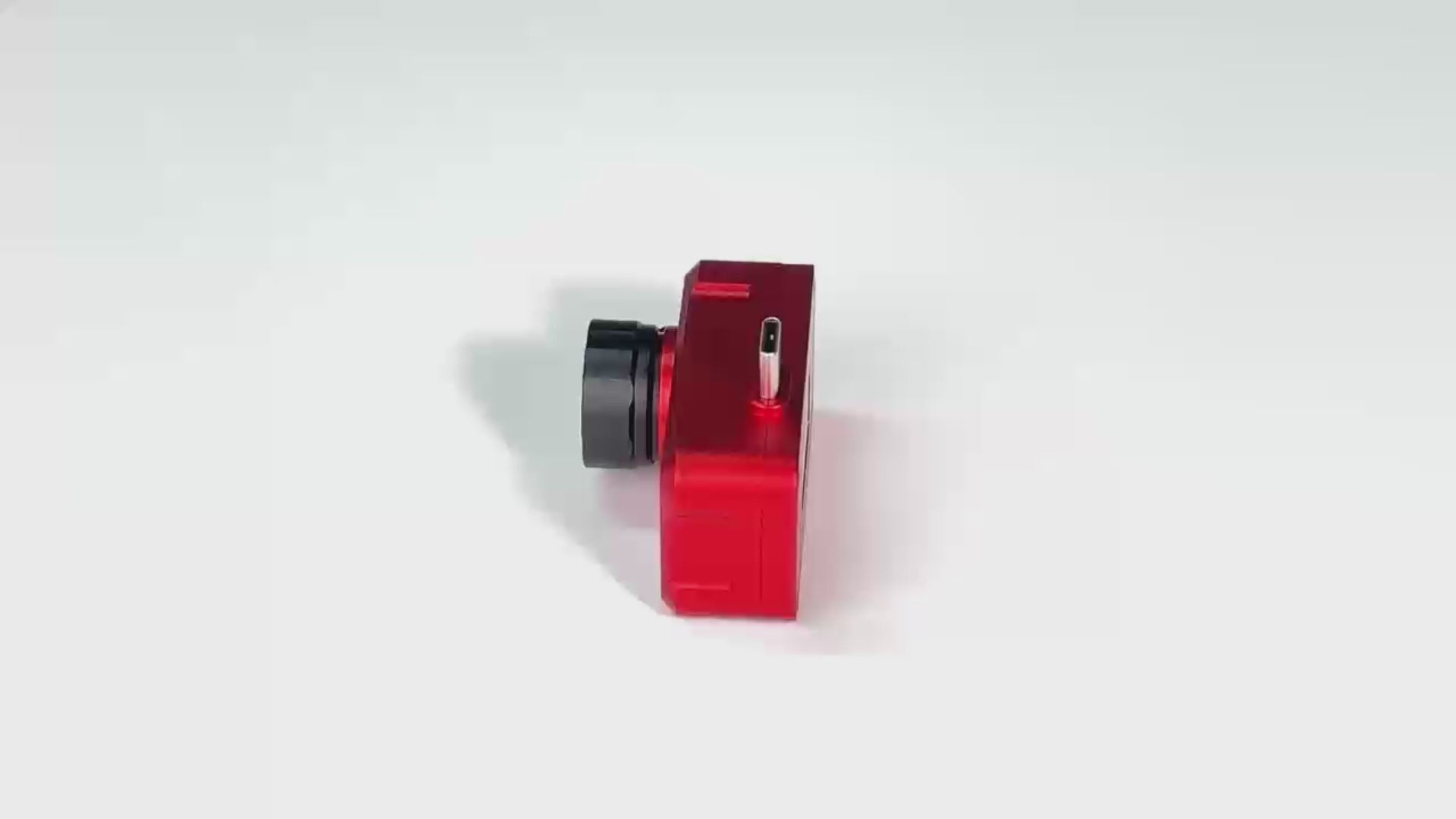

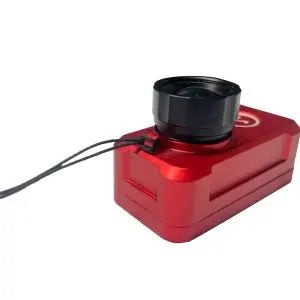

Product feature of 384x288 mini usb thermal camera for Android phone thermal imager for smartphone:
Detector resolution: 384X288
Pixel size: 17μm
NETD (Noise Isothermal Difference): ≤60mK@f#1.0
Response band: 8 ~ 14μm
Power interface: USB/Type-C
Frame rate: 25Hz
Lens focal length: 13mm
Focusing method: focus
Focus method: Manual
Aperture: F1.0
Field of view: 28. 8 ° × 21. 6 °
1.2. Characteristic
Temperature measurement range: -20℃ ~ 120℃ (Extended range: -20℃ ~ 400℃)
Temperature measurement accuracy: ±2℃ or ±2% (whichever is the maximum value)
Multimedia: Take photos (save in JPG, PNG, BMP), video (save in MP4)
Color palette: Black hot, white hot, iron red, rainbow, iron gray and high contrast rainbow, a total of 6 false colors
Picture mode: Supports 3 picture modes: dual window, picture fusion, and picture-in-picture
| Model |
OS-Q3 |
|
Detector resolution |
384×288 |
| Pixel size |
17μm |
| NETD (Noise Isothermal Difference) |
≤60mK@f#1.0 |
| response band |
8 ~ 14μm |
| Thermal Imaging |
Frame rate |
25Hz |
| lens focal length |
13mm |
| Focusing method |
focus |
| Focus method |
Manual |
| aperture |
F1.0 |
| field of view |
28. 8 ° × 21. 6 ° |
| Temperature measurement range |
-20℃ ~ 120℃ (Extended range: -20℃ ~ 400℃) |
| Temperature measurement accuracy |
±2℃ or ±2% (whichever is the maximum value) |
| APP software function |
multimedia |
Take photos (save in JPG, PNG, BMP), video (save in MP4) |
| color palette |
Black hot, white hot, iron red, rainbow, iron gray and high contrast rainbow, a total of 6 false colors |
| Picture mode |
Supports 3 picture modes: dual window, picture fusion, and picture-in-picture |
| support system |
Android 6.0 and above; supports Armerbi-v7a architecture; supports OTG function |
| Power interface |
Type-C |
| Operating temperature |
-15℃ ~ 60℃ |
| Storage temperature |
-55℃ ~ 120℃ |
| General specifications |
Power consumption |
≤0.38W/380mW |
| Material |
Aluminum alloy |
| Protection level |
IP55 |
| size |
50mm(L)×28.5mm(W)×34.5mm(H) |
| weight |
≤ 4 2g |
