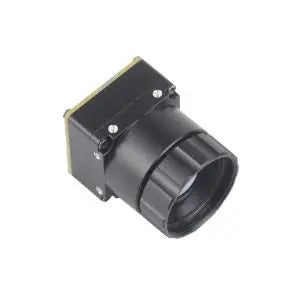

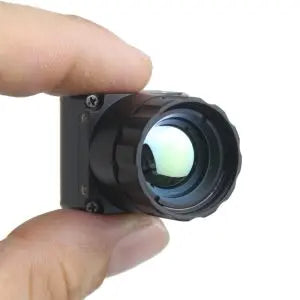

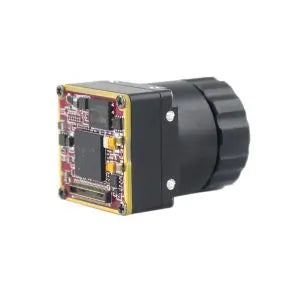

Mini 640 Thermal Camera Uncooled LWIR USB Thermography Module
Mini 640 Thermal Camera Uncooled LWIR USB Thermography Module
Product Parameter of Mini 640 Uncooled LWIR thermal Camera Module:
Resolution: 640*512
Detector Frame: 25Hz
Pixel Spacing: 12um
Response Wave Band: 8~14um
NETD: <50mK@25°C,F#1.0 (<40mK optional)
Lens Type: 9mm/18mm
Field of View(H×W): 48.7° X38.6°/31.9°X 25.7/24.2°X19.5
Thermal Palettes: White heat; Black heat;
Weight: ＜9g
Size: 21mmx21mm
1.2. Characteristic
Compact & Lightweight Design
• Digital Video: YUV、USB、BT.656
• Analog Video: CVBS、PAL、NTSC
• Serial Communication: UART、RS232、RS422
• Temp Measure Range: From -20℃ to +550℃
Clear Image & Accurate Radiometry
• lmage Processing: TECLESS algorithm/Nonuniformity correction/Digital filtering noise reduction/Digital detail enhancement
• Support regional, point & isotherm temperature measurement
Various Interfaces for Easy Integration
1.3. Thermal Imaging Applications
Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods
Fire rescue: fire warning, fire helmet
Other specific applications: Drones , power detection and thermal imaging guided missile
Thermal Camera on the Raspberry Pi/Orange Pi
| Model | Mini640-5 | Mini640-9 | Mini640-18 |
|---|---|---|---|
| Resolution | 640×512 | ||
| Detector Type | Vox | ||
| Detector Frame | 50Hz | ||
| Pixel Spacing | 12μm | ||
| Response Wave Band | 8～14μm | ||
| NETD | ≤50mK@25℃,F#1.0（≤40mK optional） | ||
| Lens: | |||
| Focus | 5mm | 9.1mm | 18mm |
| Field of View | 75°×62° | 48.7°×38.6° | 24.2°×19.5° |
| F-number | 1 | ||
| Image Adjustment: | |||
| Polarity | White heat/Black heat | ||
| Module Power Supply: | |||
| Supply Voltage | 5V or 12V | ||
| Typical Dissipation @25℃ | ＜0.5W | ||
| Video output: | |||
| Digital Video | YUV、USB、BT.656 | ||
| Analog Video | CVBS、PAL、NTSC | ||
| Serial Communication | UART、RS232、RS422 | ||
| Module Physical Properties: | |||
| Weight | 18g | 9g | 14g |
| Size | 36×36×45mm | 21×21×30mm | 21×21×38mm |
| Temperature Measurement: | |||
| Temp Measure Rang | From -20℃ to +550℃ | ||
| Environmental Adaptability: | |||
| Work Temperature | From -40℃ to +80℃ | ||
| Storage Temperature | From -50℃ to +85℃ | ||
| Humidity | 5%-95%, no condensation | ||
